Detect Corrosion in Real Time

Precision Corrosion Index Measurement

Control Metal Infrastructure , Industrial Equipment and...

...Communication and Power Towers

Our Corrosion sensor is designed to stand harsh environments

Features

✽ Accurate: Corrosion index control by comparative potential measure to a reference electrode.
✽ Effective: Detects the degradation of metals by different sources of corrosion.
✽ Smart: The sensor is programmable, sweeps different frequencies and alarms thresholds can be created.
✽ Flexible: Innovative all-in-one transducer design includes pre-processing.
✽ Simple: Forwards data through an industrial wireless system or serial port.
✽ Easy to install: Using fasteners or just adhesive
✽ Reliable: Using only top quality parts from the United States and Europe.

About

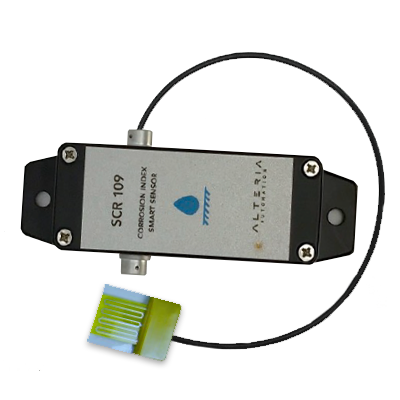

The SCR 109 is a non-contact, smart corrosion sensor, that controls the relative environmental corrosion rate by sampling with different sweep frequencies at programmable intervals, a metal twin transducer.

Featuring a state of the art, advanced micro-controller with temperature compensated circuitry, different measures can be scheduled to obtain comprehensive data over the asset under control.

sensornetwork

Sensor Network

Its design allows the installation of hundreds of sensors networked to a Gateway (hub) that is connected to a local server or to an on the cloud server.

Specifications

Physical Variables:
- Environmental corrosion index
- Hystorian evolution
- Reference electrode
Power: Databus
Sampling: 1 Sample/minute/hour/day
Output: Digital in the desired format
Connectivity: Network Connection
Wireless: ISMT Sub Ghz or wired Serial
Range:3 kilometers with standard antennas
Security: Double encryption
Dimensions: 70 x 50 x 28 mm
Weight: 0.5 Kg 1 Lb
Environmental: IP 67, resistant to harsh environments
Enclosure: ABS plastic bob
Storage Temperature: -40 C / 95C
Very Sensitive

Fivetimes more sensitivity

Precision

High noise immunity

Premium design

Patented technology

Non-Intrusive

Small footprint. Installed anywhere

Real Time

True Real Time. No sampling

Smart

Sensor can be updated

Build better Predictive Maintenance Models

This real-time non contact corrosion smart sensor uses a metal twin transducer to control the relative environmental corrosion rate

Payload Reduction

97%

Real Time Monitoring

100%

Sensitivity

100%

Corrosion Sensor Versions

We design and build several versions of this sensor. Please ask if you are not finding the best to match your application
  • 1.

    Wired

    Differential bus output is immune to noise. Daisy chain easy connection with snap on splash proof connector

    Read more
  • 2.

    Wireless

    LoRa, NB-IOT or Bluetooth 5.0 MESH. Make your choice or the best proven wireless connectivity. Other upon demand.

    Read more
  • 3.

    High Sensitivity

    Pressure wave special transducer for high senstivity is immune to acceleration. Ideal for Robotics

    Read more

Other Products

Need a custom sensor? You got it!
